LiFePO4 battery
LiFePO4 12.8 V 100 Ah · 1280 Wh · built-in 100 A BMS

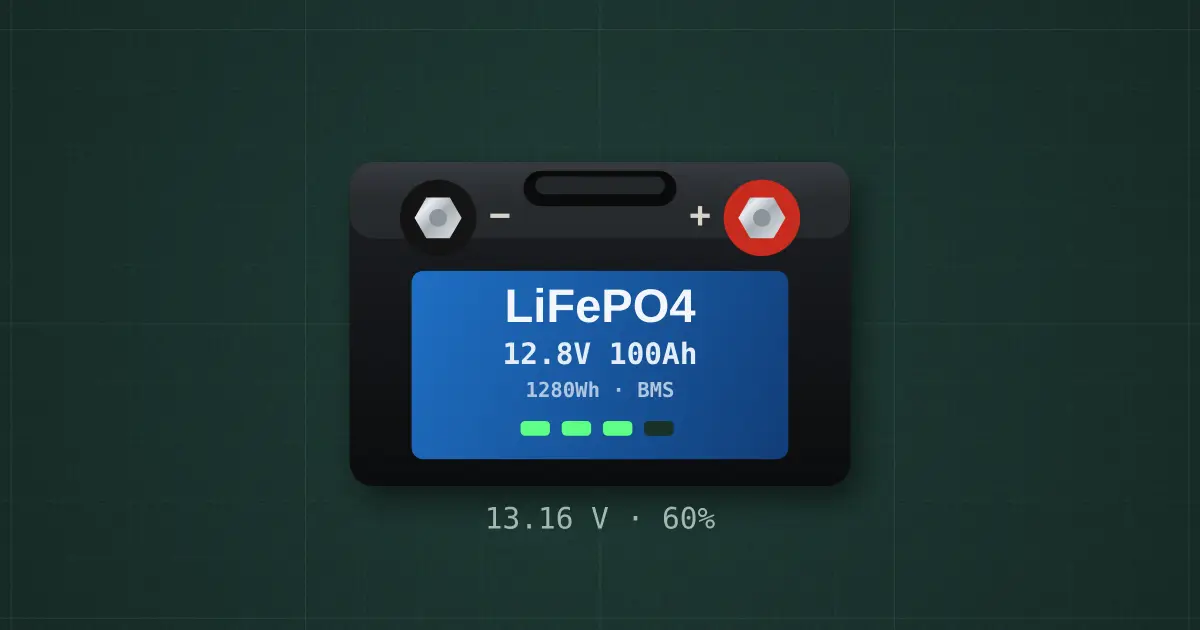

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Typical part: 12.8 V LiFePO4 with BMS
Pins
- −
- +
Ratings and limits
| Capacity | 100 Ah |
|---|---|
| Charge | 14.2–14.6 V CC/CV |
| Cut-off | ≈ 10 V (BMS) |
| Cycle life | 2000+ at 80 % DoD |
How to use it
Solar storage and UPS banks. Charge with a LiFePO4 profile, fuse the positive lead.
