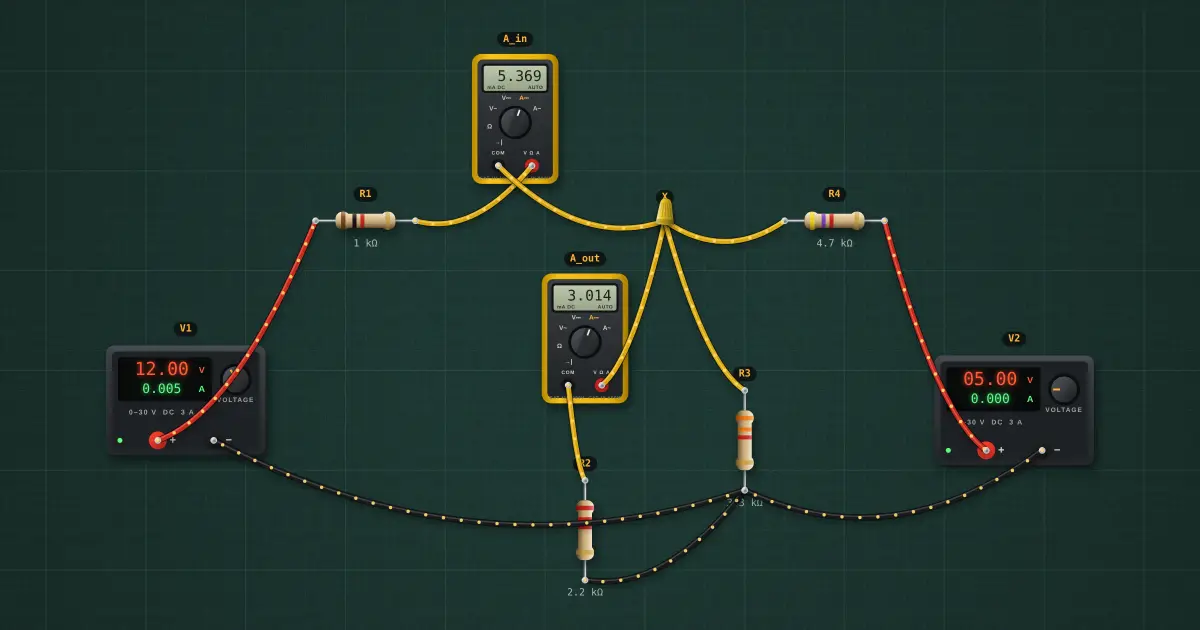

Kirchhoff’s current law

Network analysis · Intermediate · about 15 minutes · part of Zen’s Electronics Design Mastery

Charge does not pile up at a node: the current flowing into a junction equals the current flowing out.

Open this lesson in the labFree, in your browser, no account needed.

How it works

Try it on the bench

1. Turn V2 down to 0 V. Current through R4 now flows out of X instead of in, and the sum still balances.
2. Add another resistor from X to ground.

Parts on the bench

• 2 × Bench power supply
• 4 × Resistor
• 2 × Digital multimeter

In the course

Zen’s Electronics Design Mastery, module “DC Circuit Analysis”.
