Mesh analysis

Network analysis · Advanced · about 20 minutes · part of Zen’s Electronics Design Mastery

Give each window of the circuit its own loop current, write KVL for each loop, and solve the simultaneous equations. A shared branch carries the difference of the two loop currents.

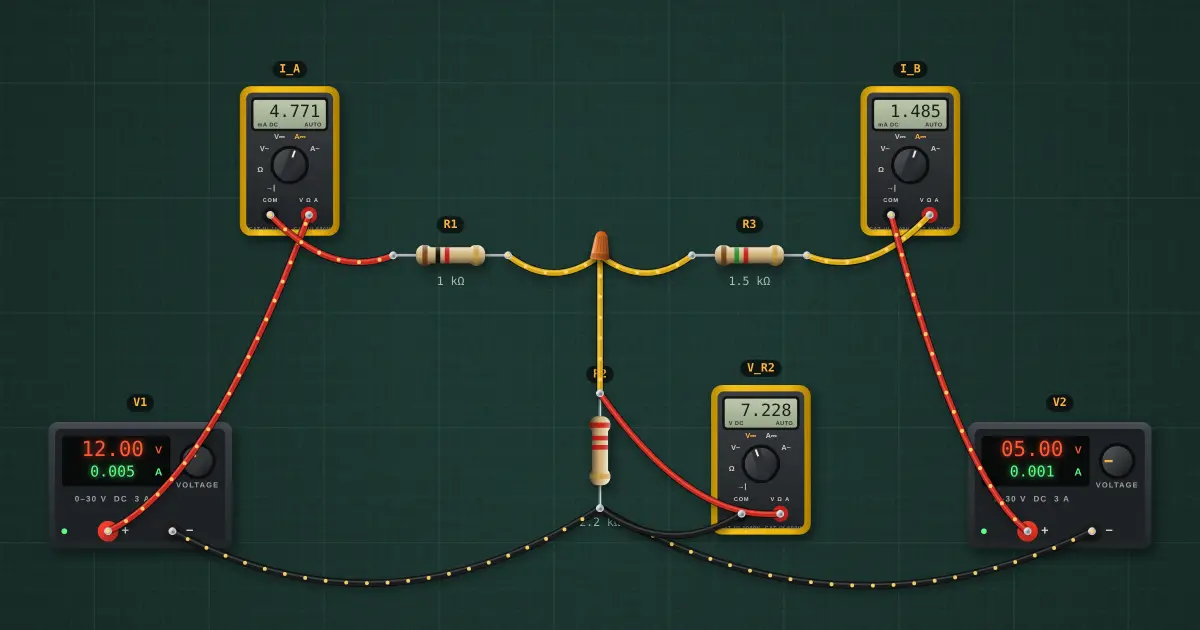

Mesh analysis: the circuit on the simulator's bench

Open this lesson in the labFree, in your browser, no account needed.

How it works

Loop A: (R1 + R2)·I_A − R2·I_B = V1 → 3.2 kΩ·I_A − 2.2 kΩ·I_B = 12 V

Loop B: −R2·I_A + (R2 + R3)·I_B = −V2 → −2.2 kΩ·I_A + 3.7 kΩ·I_B = −5 V

I_A = 4.771 mA, I_B = 1.486 mA, I_R2 = I_A − I_B = 3.286 mA

Try it on the bench

Raise V2 until I_B goes negative. V2 is now delivering current instead of absorbing it.
Set R2 to 10 kΩ and see the two meshes decouple.

Parts on the bench

2 × Bench power supply
3 × Digital multimeter
3 × Resistor

In the course

Zen’s Electronics Design Mastery, module “DC Circuit Analysis”.
