Kirchhoff’s voltage law

Network analysis · Intermediate · about 15 minutes · part of Zen’s Electronics Design Mastery

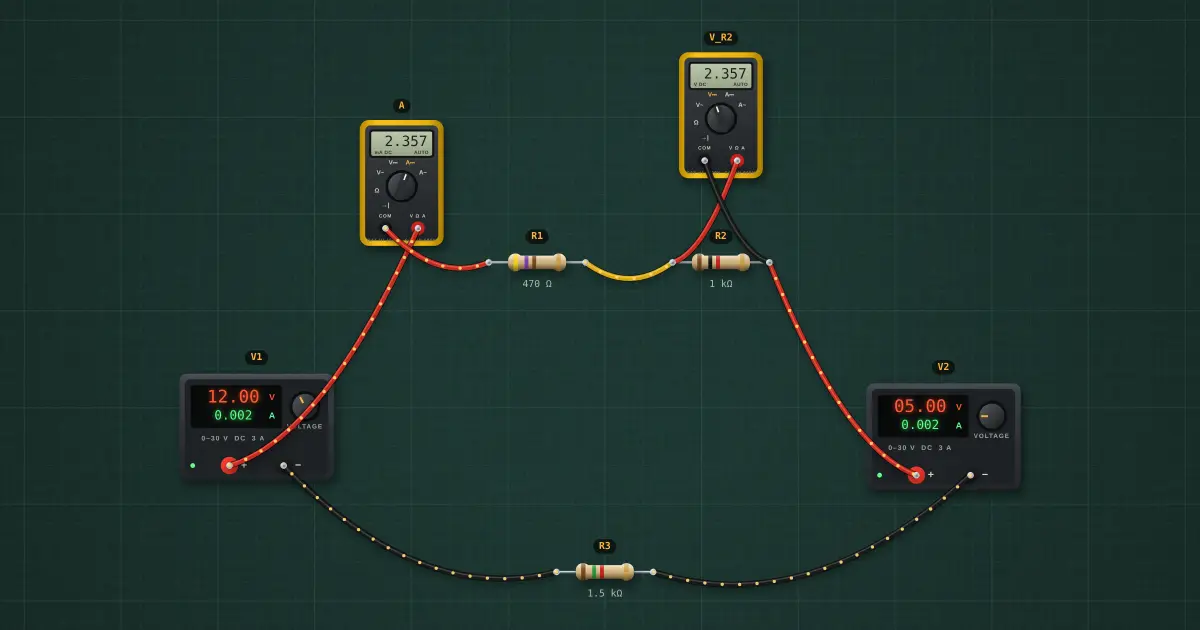

Go around any closed loop adding rises and subtracting drops, and you always get back to zero. Here two opposing sources share one loop.

Open this lesson in the labFree, in your browser, no account needed.

How it works

Try it on the bench

1. Raise V2 above V1. The current reverses and every drop changes sign, but the sum is still zero.
2. Add a fourth resistor anywhere in the loop.

Parts on the bench

• 2 × Bench power supply
• 2 × Digital multimeter
• 3 × Resistor

In the course

Zen’s Electronics Design Mastery, module “DC Circuit Analysis”.
