74HC14 Schmitt inverter (DIP-14)

Digital logic · Hex NOT with hysteresis

74HC14 hex Schmitt-trigger inverter · 2–6 V · switches high at about 0.55 V_CC rising and low at about 0.37 V_CC falling, so slow or noisy edges give one clean transition · DIP-14, VCC pin 14, GND pin 7

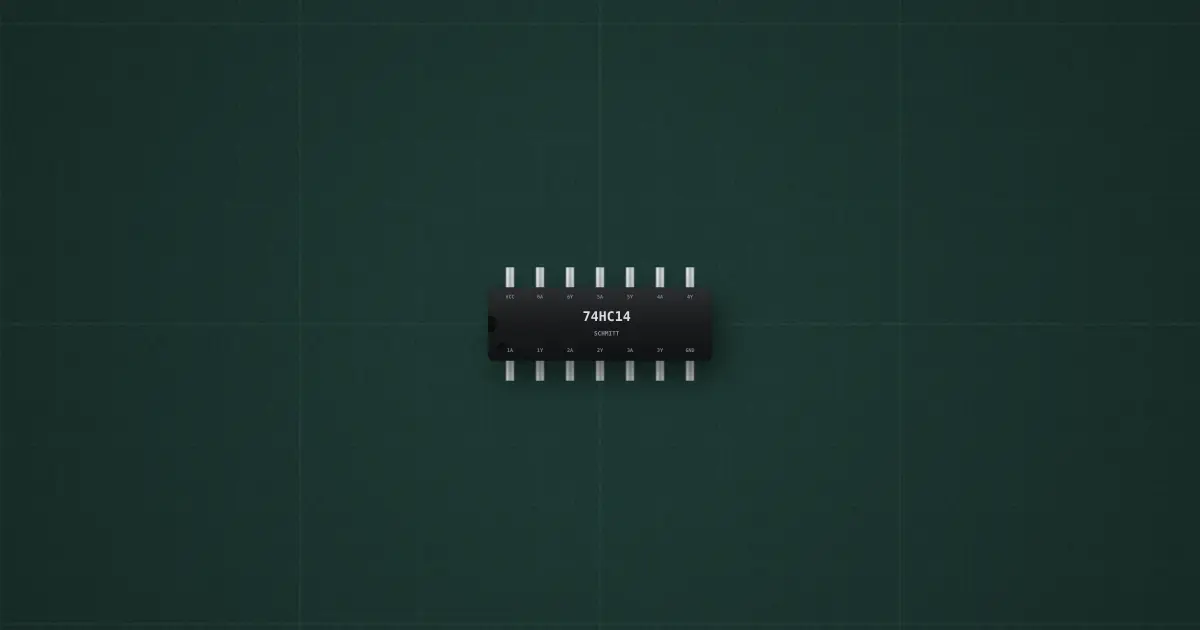

74HC14 Schmitt inverter (DIP-14) on the simulator's bench

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Typical part: 74HC14 hex Schmitt inverter

Pins

Ratings and limits

Supply2–6 V
V_T+ / V_T−≈ 0.55 / 0.37 × V_CC
Output±25 mA

How to use it

Cleans up slow or noisy edges: debounced buttons, RC oscillators (one gate, one R, one C), squaring up sine waves, power-on reset delays.
