74xx393 (HC393, DIP-14)

Digital logic · Dual 4-bit binary ripple counter

HC393 Dual 4-bit binary ripple counter · 74HC · CMOS · DIP-14 · VCC pin 14, GND pin 7

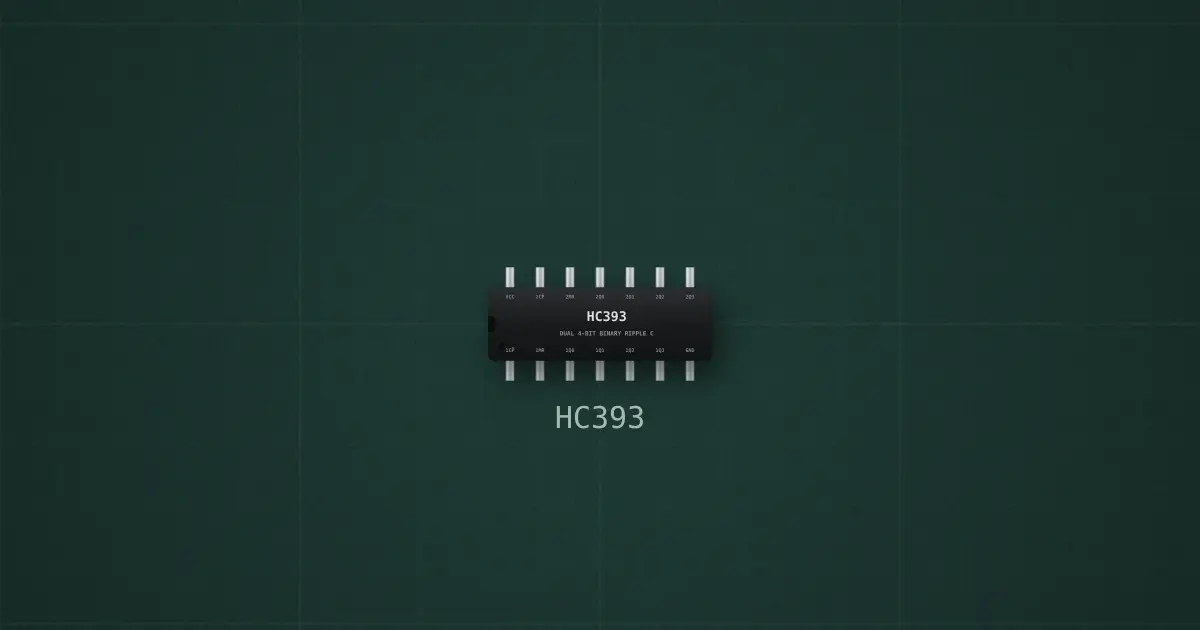

74xx393 (HC393, DIP-14) on the simulator's bench

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

1CP̅
1MR
1Q0
1Q1
1Q2
1Q3
GND
2Q3
2Q2
2Q1
2Q0
2MR
2CP̅
VCC
