74xx4511 (HC4511, DIP-16)

Digital logic · BCD to 7-segment latch/decoder/driver

HC4511 BCD to 7-segment latch/decoder/driver · 74HC · CMOS · DIP-16 · VCC pin 16, GND pin 8

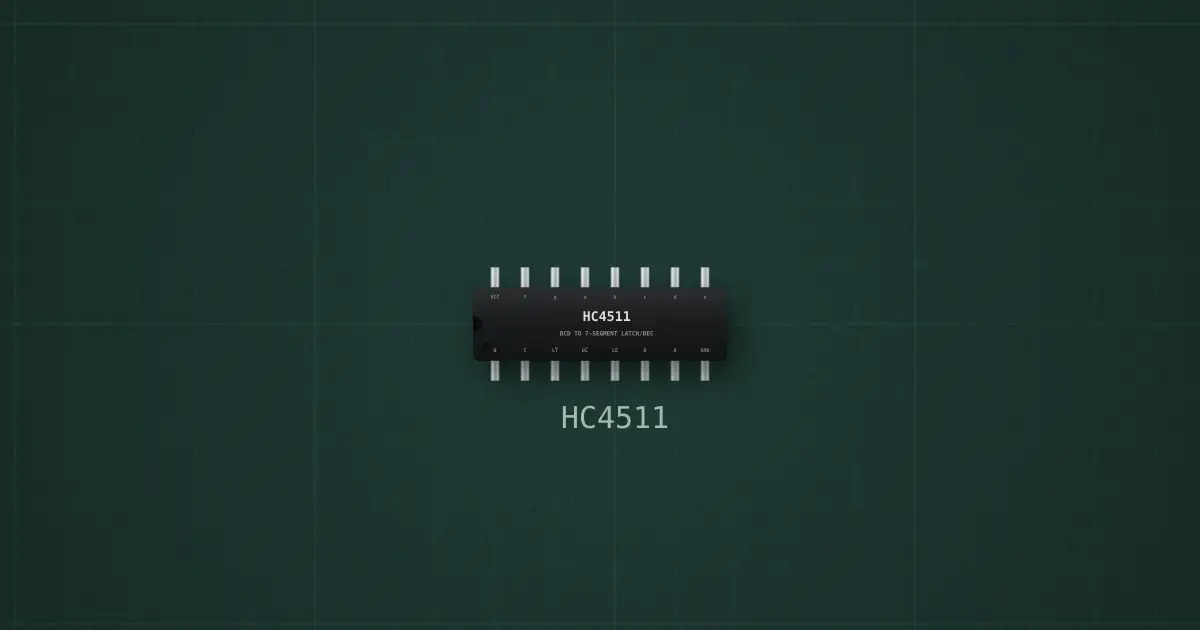

74xx4511 (HC4511, DIP-16) on the simulator's bench

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

B
C
LT̅
BL̅
LE
D
A
GND
e
d
c
b
a
g
f
VCC

Lessons and builds that use it

BCD decoder and 7-segment display
