74xx107 (HC107, DIP-14)

Digital logic · Dual JK flip-flop, falling edge

HC107 Dual JK flip-flop, falling edge · 74HC · CMOS · DIP-14 · VCC pin 14, GND pin 7

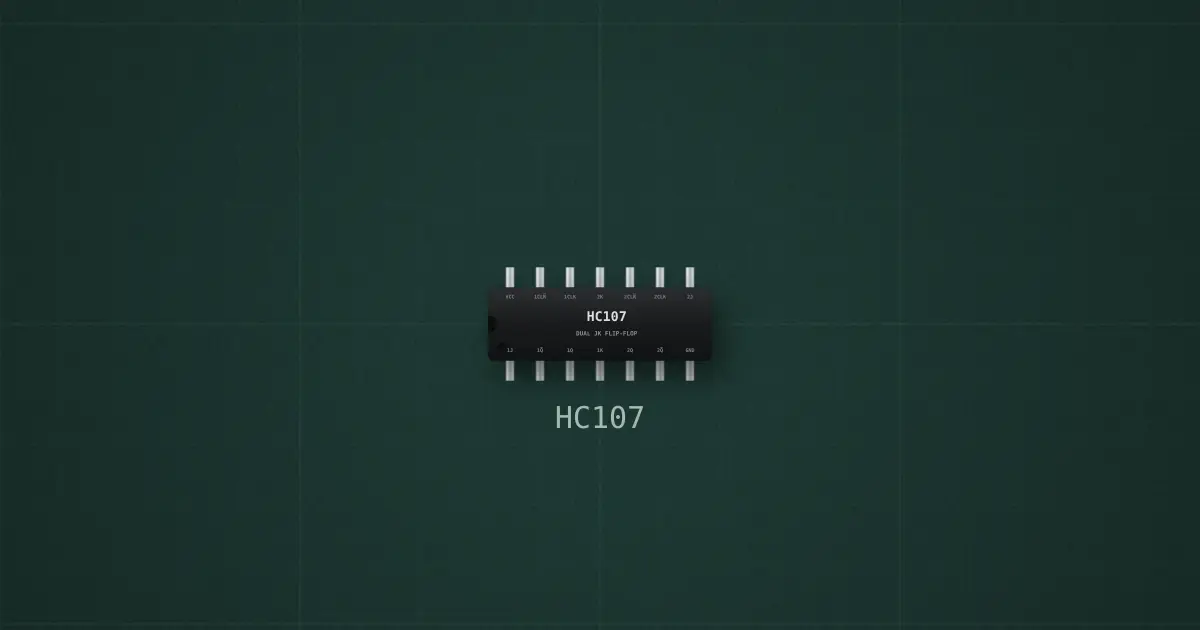

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

• 1J
• 1Q̅
• 1Q
• 1K
• 2Q
• 2Q̅
• GND
• 2J
• 2CLK
• 2CLR̅
• 2K
• 1CLK
• 1CLR̅
• VCC

Lessons and builds that use it

• JK flip-flop
• 4-bit ripple counter
