74xx161 (HC161, DIP-16)

Digital logic · Synchronous 4-bit binary counter

HC161 Synchronous 4-bit binary counter · 74HC · CMOS · DIP-16 · VCC pin 16, GND pin 8

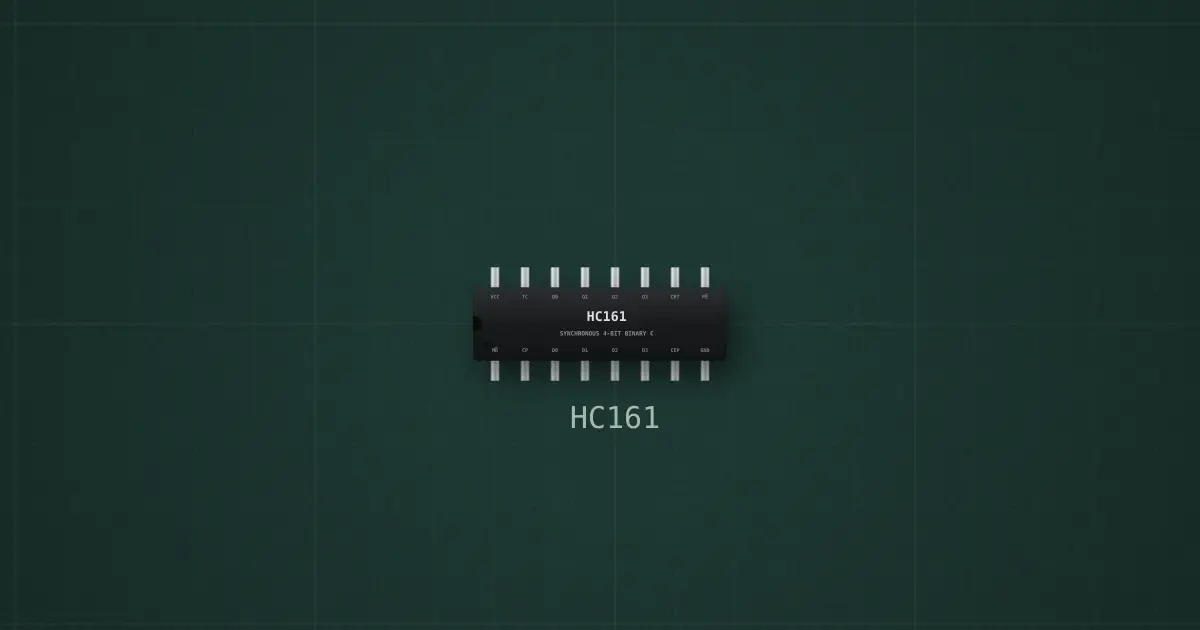

74xx161 (HC161, DIP-16) on the simulator's bench

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

MR̅
CP
D0
D1
D2
D3
CEP
GND
PE̅
CET
Q3
Q2
Q1
Q0
TC
VCC
