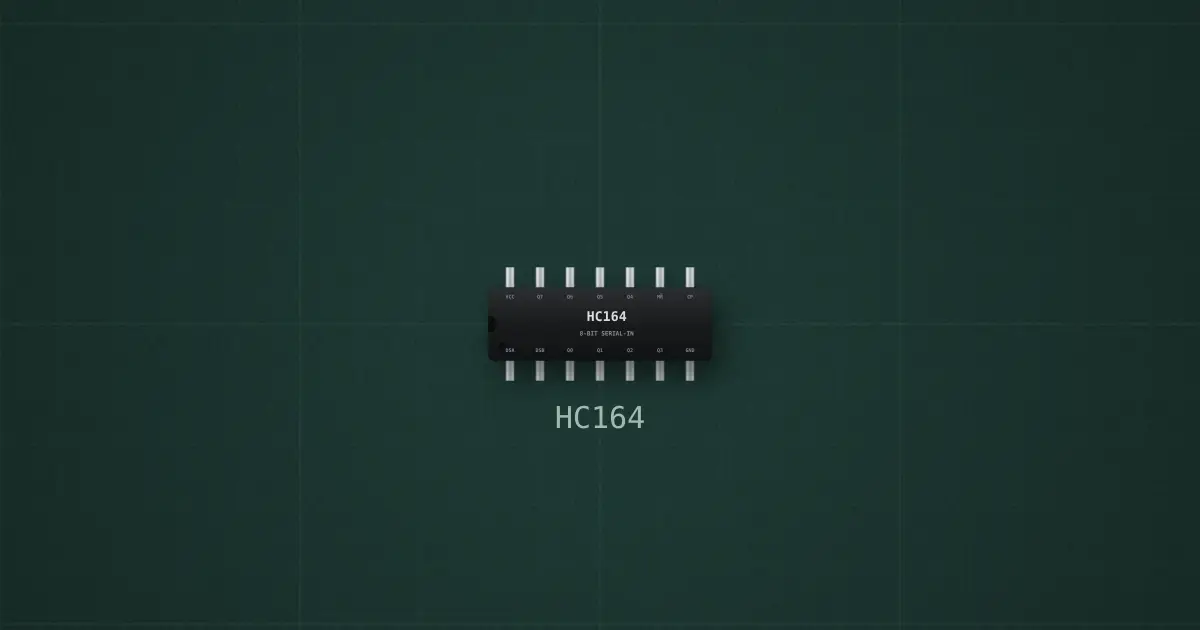

74xx164 (HC164, DIP-14)

Digital logic · 8-bit serial-in, parallel-out shift register

HC164 8-bit serial-in, parallel-out shift register · 74HC · CMOS · DIP-14 · VCC pin 14, GND pin 7

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

• DSA
• DSB
• Q0
• Q1
• Q2
• Q3
• GND
• CP
• MR̅
• Q4
• Q5
• Q6
• Q7
• VCC
