74xx86 (HC86, DIP-14)

Digital logic · Quad 2-input XOR

HC86 Quad 2-input XOR · 74HC · CMOS · DIP-14 · VCC pin 14, GND pin 7

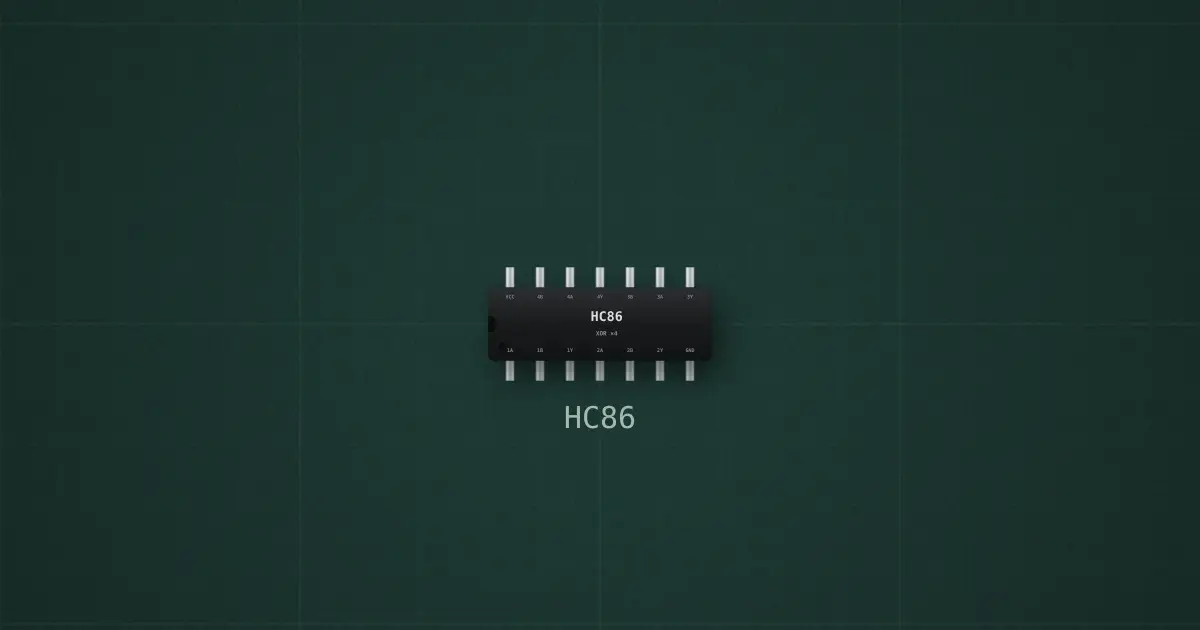

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

• 1A
• 1B
• 1Y
• 2A
• 2B
• 2Y
• GND
• 3Y
• 3A
• 3B
• 4Y
• 4A
• 4B
• VCC

Lessons and builds that use it

• XOR gate
• Half adder
• Full adder
