IGBT (IRGB4062)

Diodes & transistors · 600 V 20 A

IRGB4062 class · 600 V · 24 A · V_CE(sat) ≈ 1.7 V · V_GE(th) ≈ 5 V · drive the gate with 15 V · co-packed fast diode

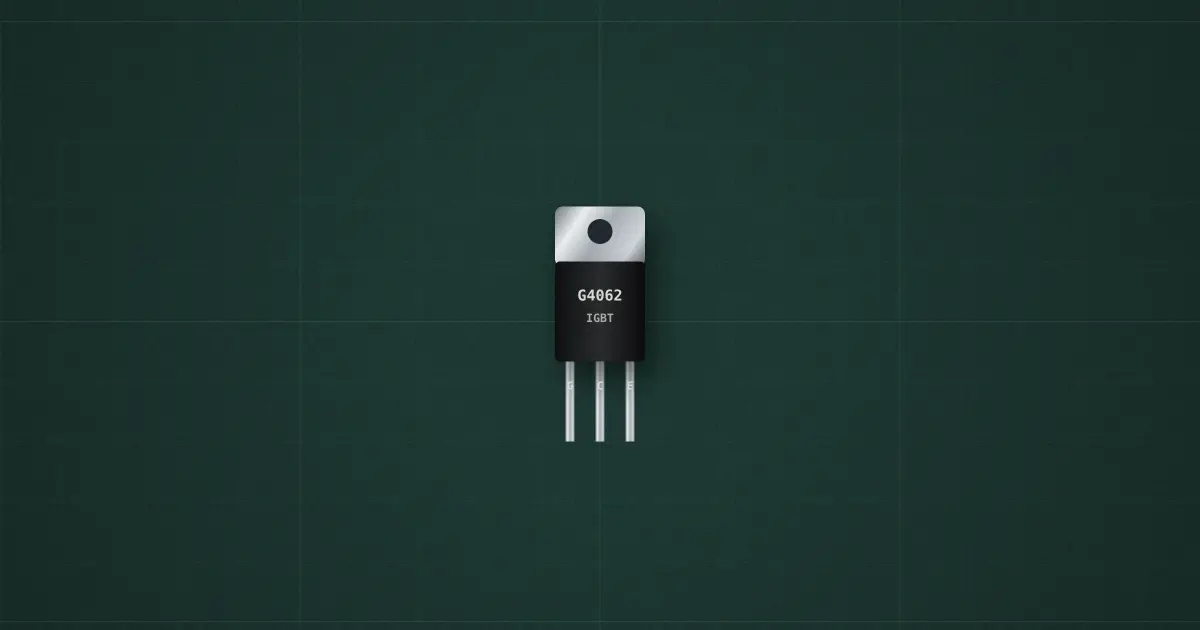

IGBT (IRGB4062) on the simulator's bench

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Typical part: IGBT, 600 V

Pins

Ratings and limits

V_CE600 V
I_C24 A
V_CE(sat)≈ 1.7 V
V_GE±20 V, drive with 15 V

How to use it

MOSFET-like gate with a bipolar output: the switch in inverters, induction cookers, welders and motor drives.
