Schottky diode (1N5819, SR560, 1N5822, SS34)
1N5819 · Schottky · 1 A · 40 V · low Vf

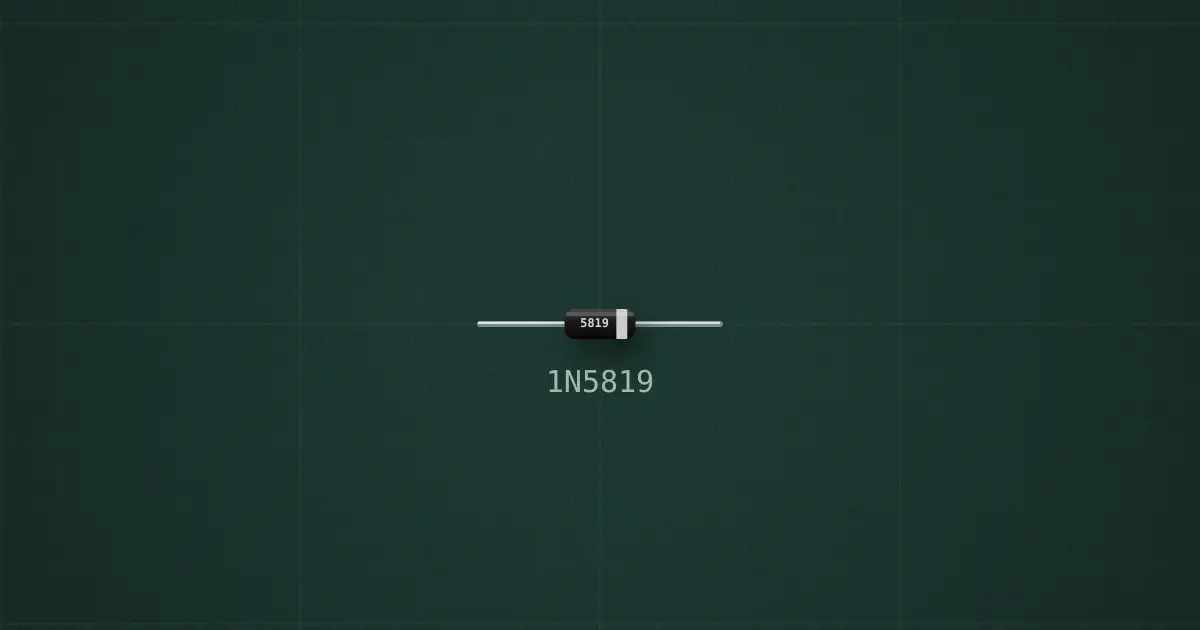

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Typical part: 1N5819 / SS34
Pins
- Anode
- Cathode (band)
Ratings and limits
| Peak inverse voltage | 40 V |
|---|---|
| Forward current | 1 A |
| V_F | ≈ 0.3–0.45 V |
How to use it
Low-drop rectifier for switch-mode supplies and power ORing (solar, battery backup): less heat than a silicon diode, but more reverse leakage.
