Rectifier diode (1N4007, 1N4001, 1N5408)
1N4007 · General-purpose rectifier · 1 A · 1000 V

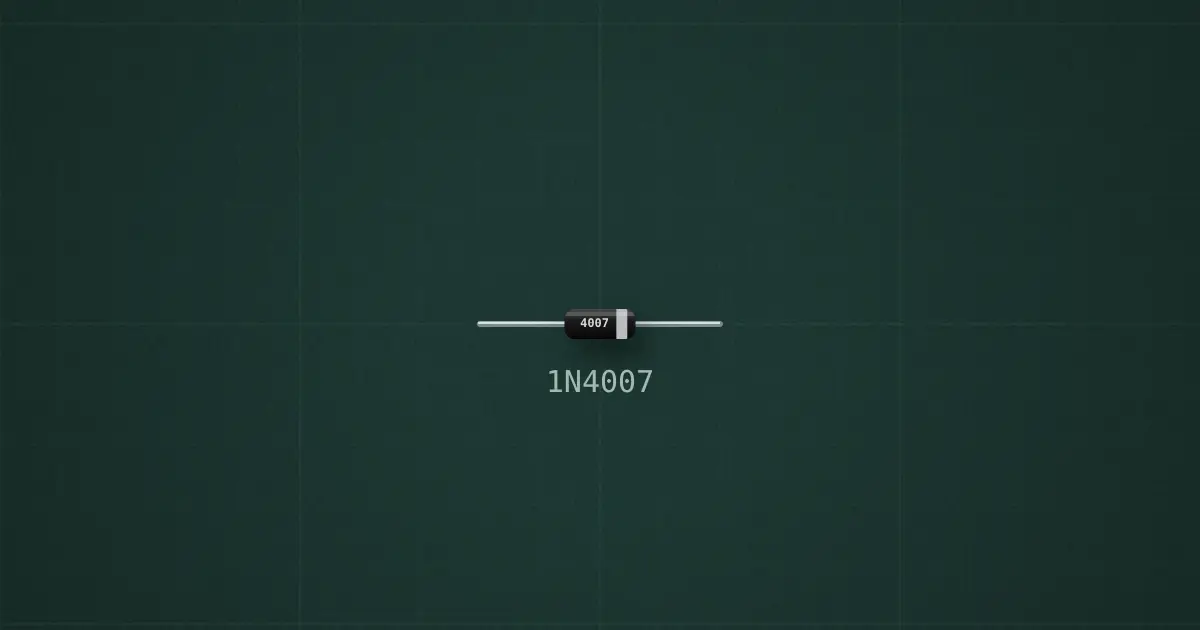

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Typical part: 1N4001–1N4007 / 1N5408
Pins
- Anode
- Cathode (band)
Ratings and limits
| Peak inverse voltage | 1000 V |
|---|---|
| Average forward current | 1 A |
| Surge (8.3 ms) | 30 A |
How to use it
Rectifiers and reverse-polarity protection. The band marks the cathode.
