PNP transistor (2N2907A, TO-92, 2N2907)

Diodes & transistors · 2N2907

2N2907 · TO-92 · β ≈ 180 · 600 mA

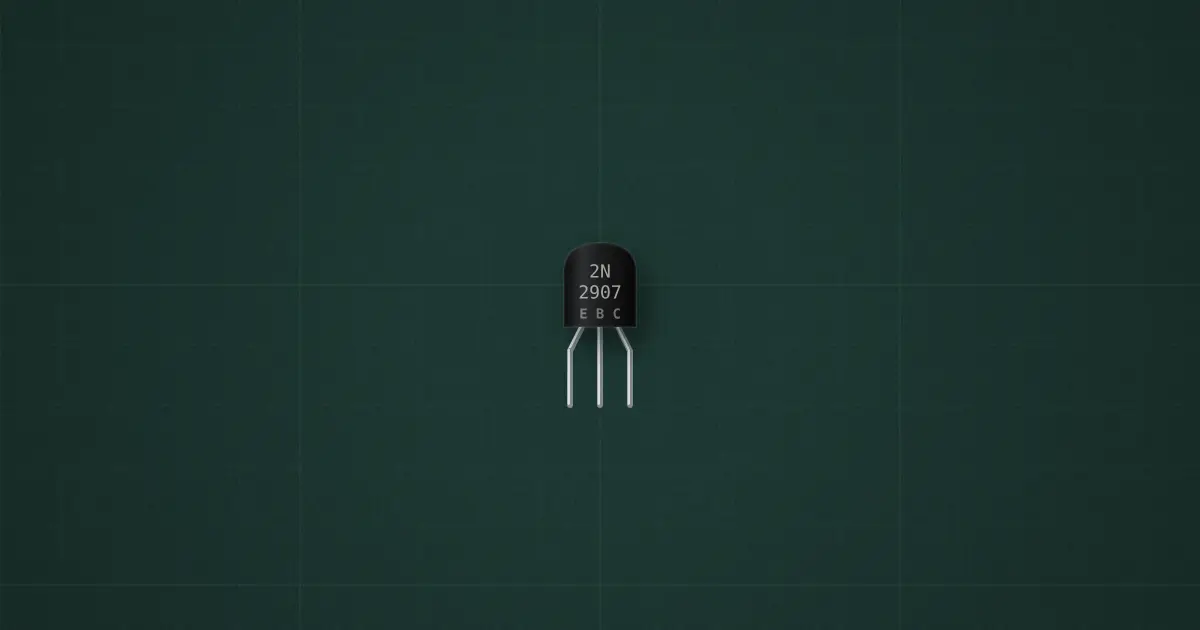

PNP transistor (2N2907A, TO-92, 2N2907) on the simulator's bench

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Typical part: 2N2907A (TO-92)

Pins

Ratings and limits

V_CEO−60 V
I_C−600 mA
P_tot625 mW
h_FE100–300

How to use it

High-side switch (load to ground, emitter to supply), current mirrors, push-pull output stages with an NPN.
