Zener diode (1N4733A)
1N4733A · 5.1 V Zener · 1 W · 7 Ω at 49 mA

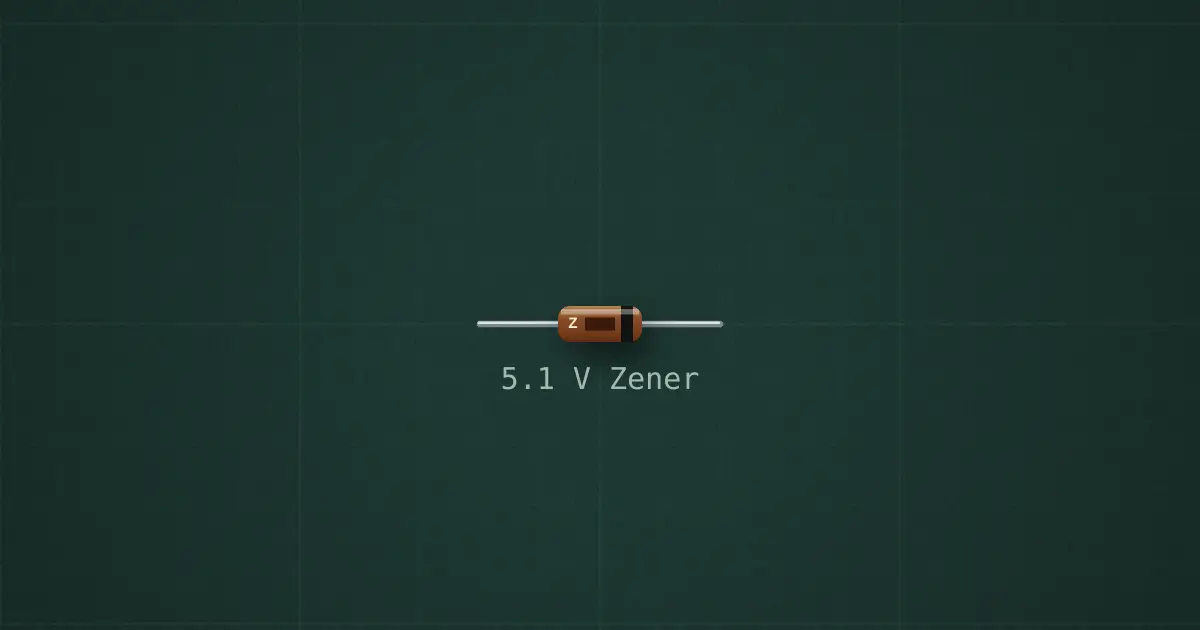

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Typical part: 1N47xx 1 W series
Pins
- Anode
- Cathode (band)
Ratings and limits
| Zener voltage | 5.1 V ±5 % |
|---|---|
| Power | 1 W at 50 °C lead temperature |
| Max zener current | ≈ 196 mA |
How to use it
Simple voltage reference or clamp: a resistor from the supply feeds the zener; the load takes its voltage across the zener.
