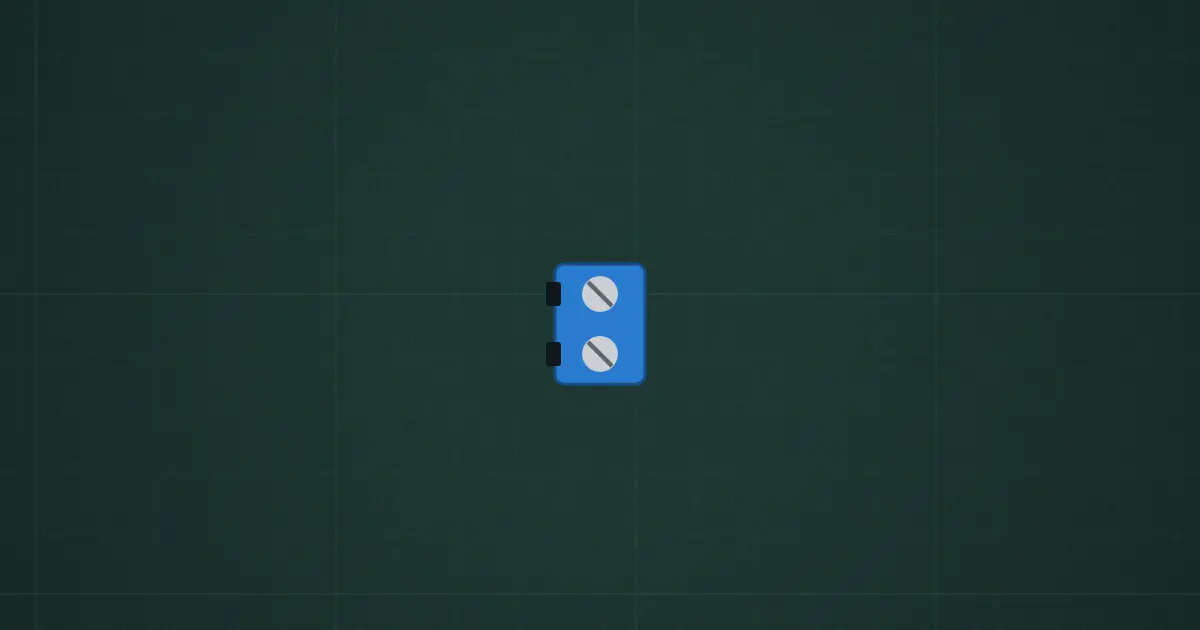

Screw terminal block (KF301)

Connectors & wiring · 5.08 mm · 2–6 way

PCB screw terminal (KF301 type) · 2 way · 5.08 mm pitch · 300 V 16 A · pins solder into the board, wires clamp in the side

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

• pin 1 (into the board)
• pin 2 (into the board)
• screw 1 (wire in)
• screw 2 (wire in)
