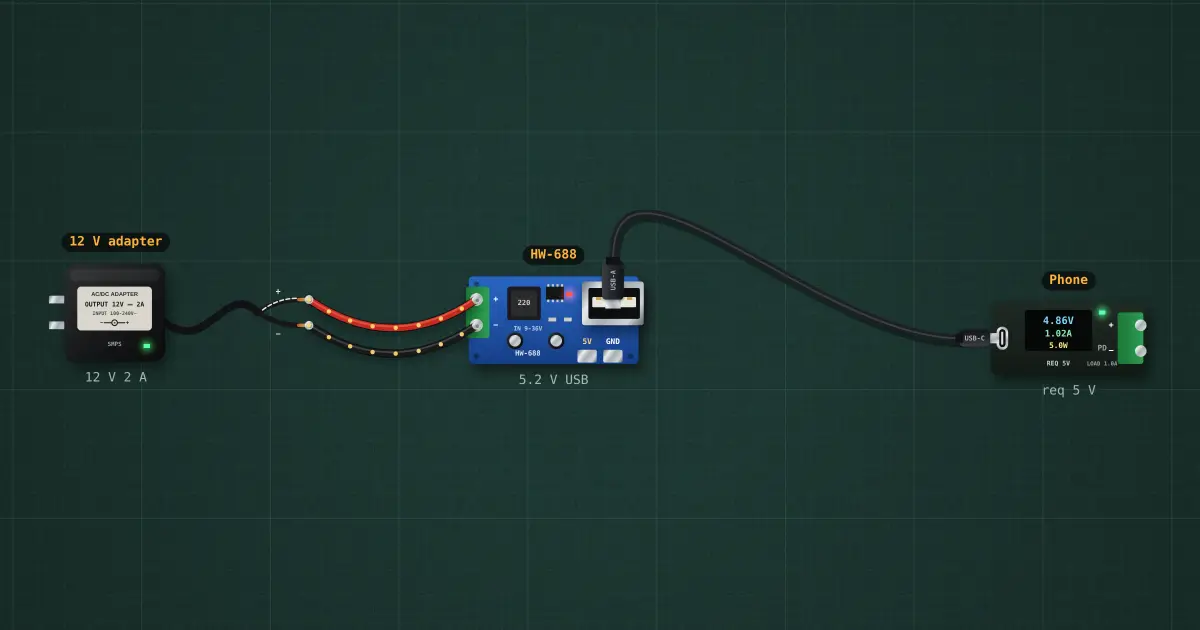

Charging a phone from 12 V with an HW-688
The HW-688 buck module turns 9–36 V into USB 5 V. Plug a cable into its USB-A port and the phone at the far end sees 5.2 V minus whatever the cable drops. This is how car chargers and solar USB outlets work.
Open this lesson in the labFree, in your browser, no account needed.
How it works
The HW-688 regulates its USB port to about 5.2 V. Through 1 m of 24 AWG (standard) (loop 288 mΩ), at 0 A:
V_phone = 0 V − 0 A × 288 mΩ = 0 V
Input side: 0 W out ÷ 90 % efficiency ≈ 0 A from the 12 V adapter.
Try it on the bench
- Try to plug a USB-C → C cable into the HW-688 (set the cable type in Connect with): it is rejected, because the module has a USB-A port.
- Raise the phone load to 2.5 A and select the cable: watch the drop grow. Then switch to 20 AWG.
- Turn on Tools → Power & heat overlay to see where the watts go.
Parts on the bench
In the course
Zen’s Electronics Design Mastery, module “Capstone — Connected Tracker”.
