USB-C PD trigger + meter (ZY12PDN)
USB-C PD sink (trigger board) · requests 9 V · 5.1 kΩ Rd on CC · built-in V/A meter and 0–3 A load · OUT+/OUT− screw terminals switched on when the contract is met
Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

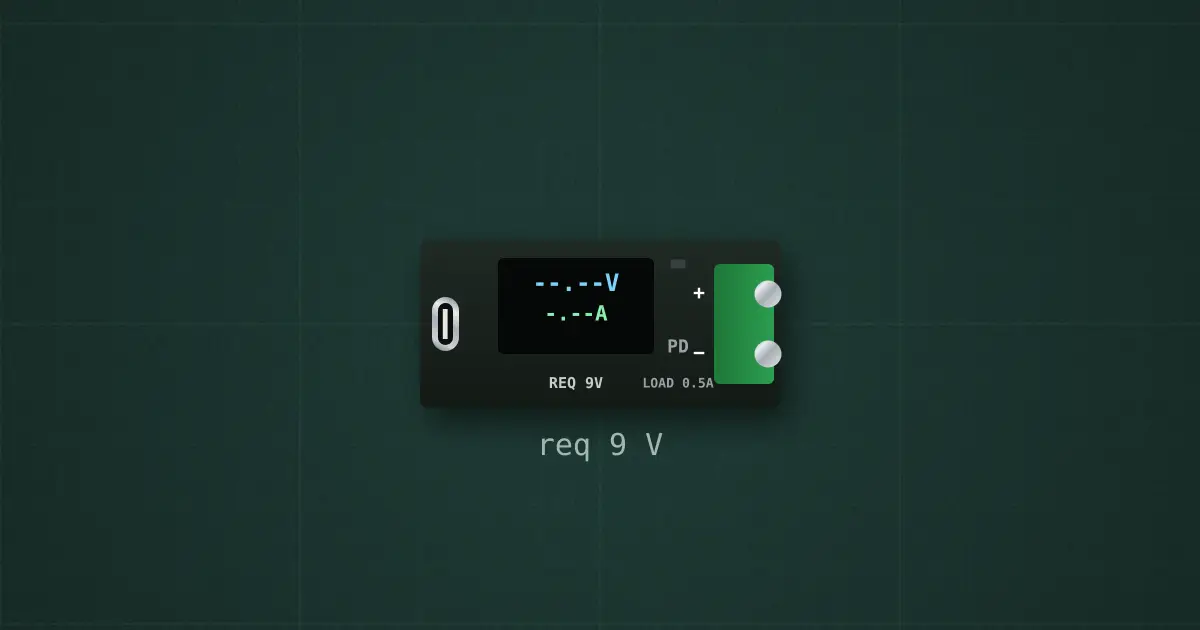

Typical part: ZY12PDN-style PD trigger with USB meter
Pins
- USB-C port (in)
- OUT+
- OUT−
Ratings and limits
| Input | 5–20 V USB-C PD |
|---|---|
| Output | the requested voltage, up to 5 A |
| Rd | 5.1 kΩ on CC |
How to use it
Get 9/12/15/20 V from a USB-C laptop charger to power a router, LED strip or soldering iron. If the charger does not offer the requested voltage, the output stays off.
