USB charger / port

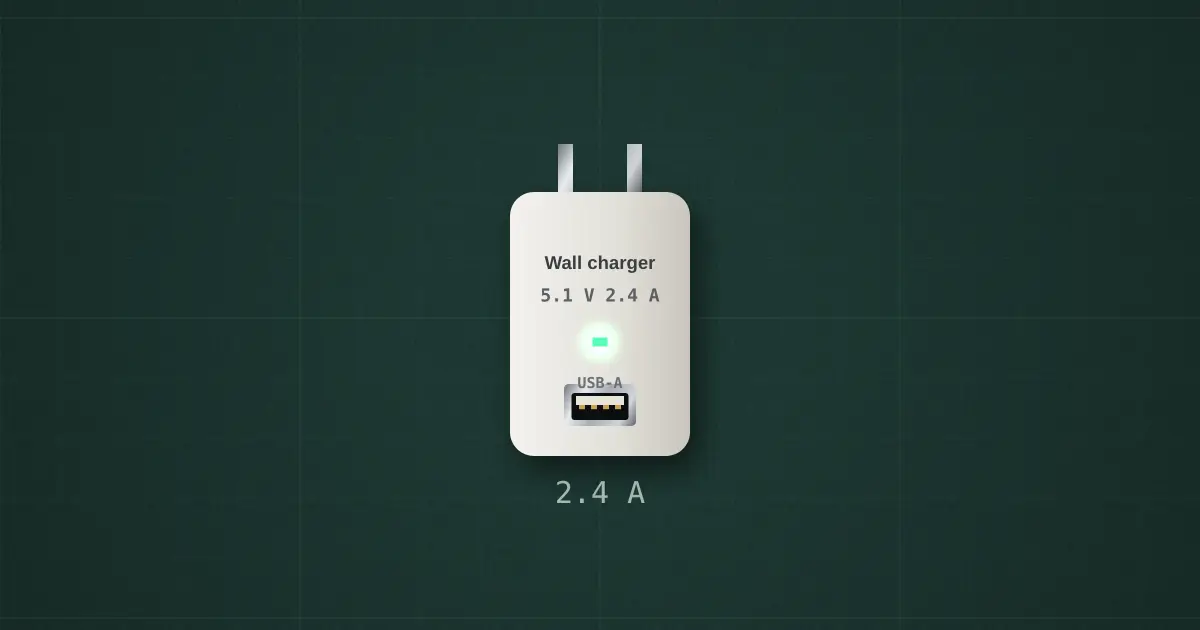

Wall charger · USB-A · 5.1 V 2.4 A · D+ and D− shorted (BC1.2 dedicated charging port)
Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Typical part: 5 V 2.4 A USB-A wall charger
Pins
- USB-A port
Ratings and limits
| Output | 5.1 V, 2.4 A max |
|---|---|
| Behaviour above the limit | constant-current, the voltage drops |
| D+ / D− | D+ and D− shorted (BC1.2 dedicated charging port) |
How to use it
Powers 5 V gadgets through a USB-A cable. Laptop ports supply only 0.5 A (USB 2.0) unless they are charging ports.
