USB-C breakout
USB-C receptacle on a breakout · VBUS, GND, CC1, CC2, D+, D− on 2.54 mm pins · 5.1 kΩ Rd fitted on CC1 and CC2

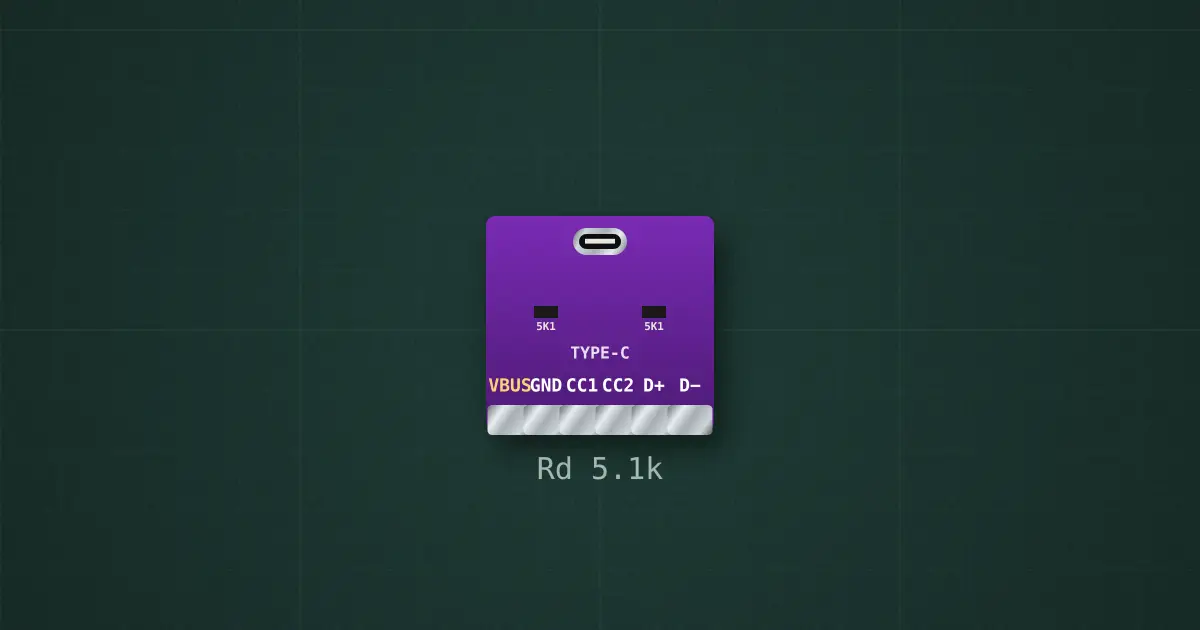

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Typical part: USB-C receptacle breakout
Pins
- USB-C port
- VBUS
- GND
- CC1
- CC2
- D+
- D−
Ratings and limits
| VBUS | up to 20 V / 3 A (5 A with an e-marked cable) |
|---|---|
| Rd | 5.1 kΩ to GND on CC1 and CC2 (if fitted) |
| Pitch | 2.54 mm header |
How to use it
Bring USB-C power (or D+/D−) to a breadboard. Fit the two 5.1 kΩ Rd resistors or a C → C charger will never switch VBUS on.
