Synchronous buck converter IC

USB & power interfaces · 36 V · 8 A · FB 1.25 V

Synchronous buck controller with both MOSFETs inside (averaged model: the switch node is duty × VIN) · 4.5–36 V in · 8 A current limit · regulates FB to 1.25 V · 2 ms soft start · 95 % efficient

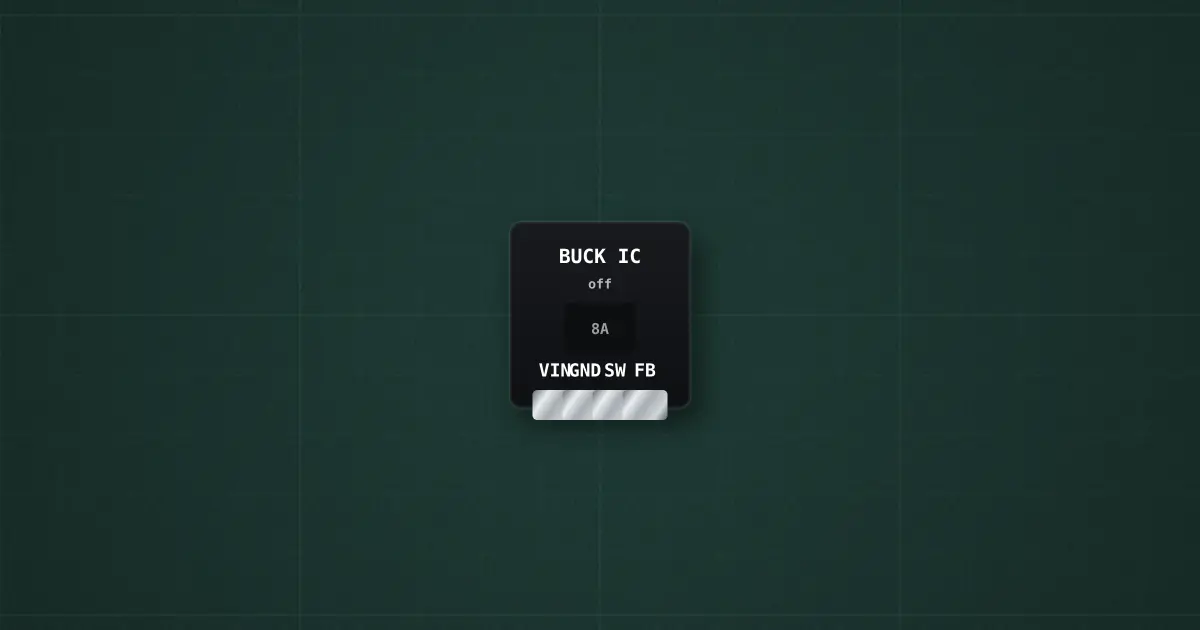

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

• VIN
• GND
• SW (to the inductor)
• FB (1.25 V)

Lessons and builds that use it

• 65 W USB-C PD stage on a ready-made 24 V supply: buck converter, PD controller, load switch (build)
