Flyback transformer (PQ26, PQ2625)
Gapped ferrite PQ26/25 flyback transformer · Np 40 : Ns 8 : Na 22 · Lp 450 µH · leakage 4 µH · saturates near 3.4 A · secondary in triple-insulated wire, 3 kV primary to secondary

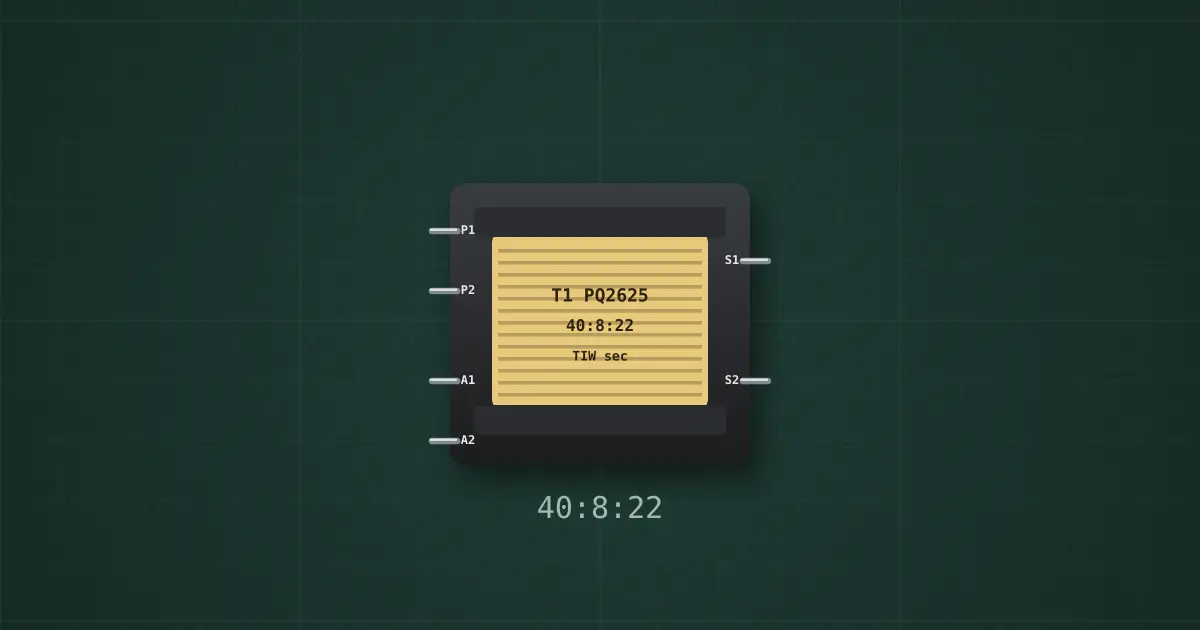

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Pins
- P1 primary start (bulk +)
- P2 primary end (drain)
- S1 secondary (to the diode)
- S2 secondary return
- A1 aux winding
- A2 aux return
