Exam: size and wire a system for this home

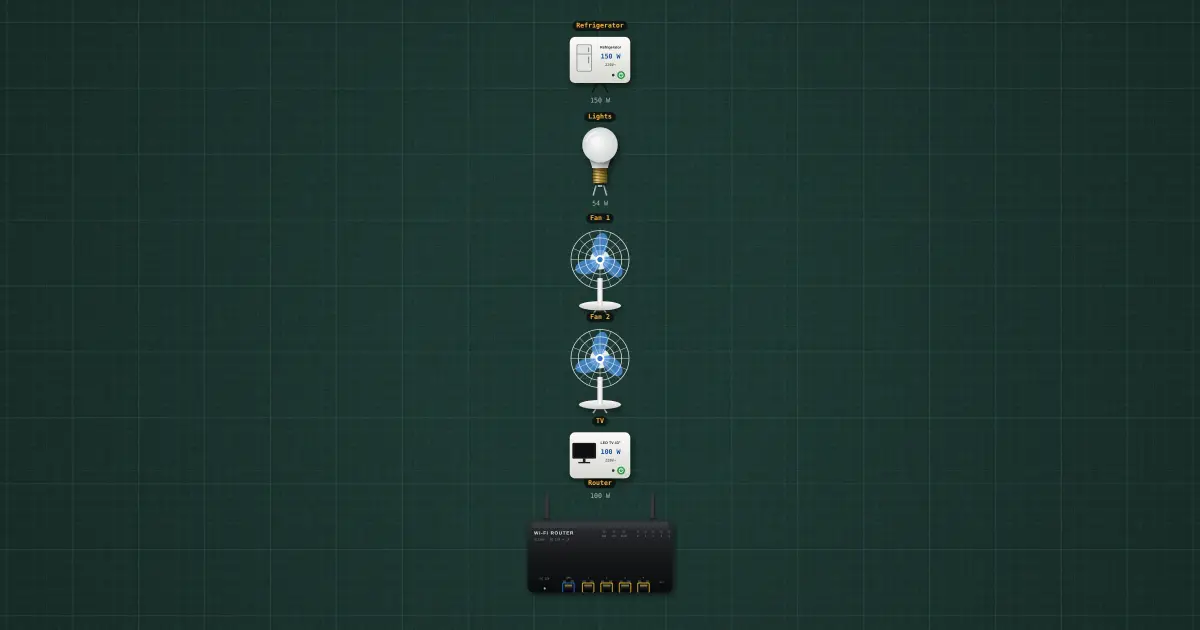

A family in Lapu-Lapu: a two-door refrigerator, six LED lights for six hours at night, two fans for ten hours (mostly at night), a 43" TV for five hours in the evening and a Wi-Fi router, all on the bench and labelled. Give them solar that carries the night. Budget ₱180,000 at the studio’s prices. Pass the safety check with zero fails, and the night test run.
Open this lesson in the labFree, in your browser, no account needed.
How it works
Graded on:
- Safety check: zero fails
- Every labelled load has power (220 V at the AC loads, 12 V at the router)
- The night test run passes on this exact wiring (⏱ Test run → The night)
- Estimated cost under ₱180,000 (the studio’s prices)
Build on this bench, then press Check my design on the exam card. 40 minutes is the target; attempts and time are kept in your transcript. Hints cost nothing but are noted.
Parts on the bench
