Matched transistor pair (DMMT3904)

Diodes & transistors · Dual NPN / PNP

DMMT3904 dual NPN on one die · V_BE matched to 1 mV · both share the same temperature

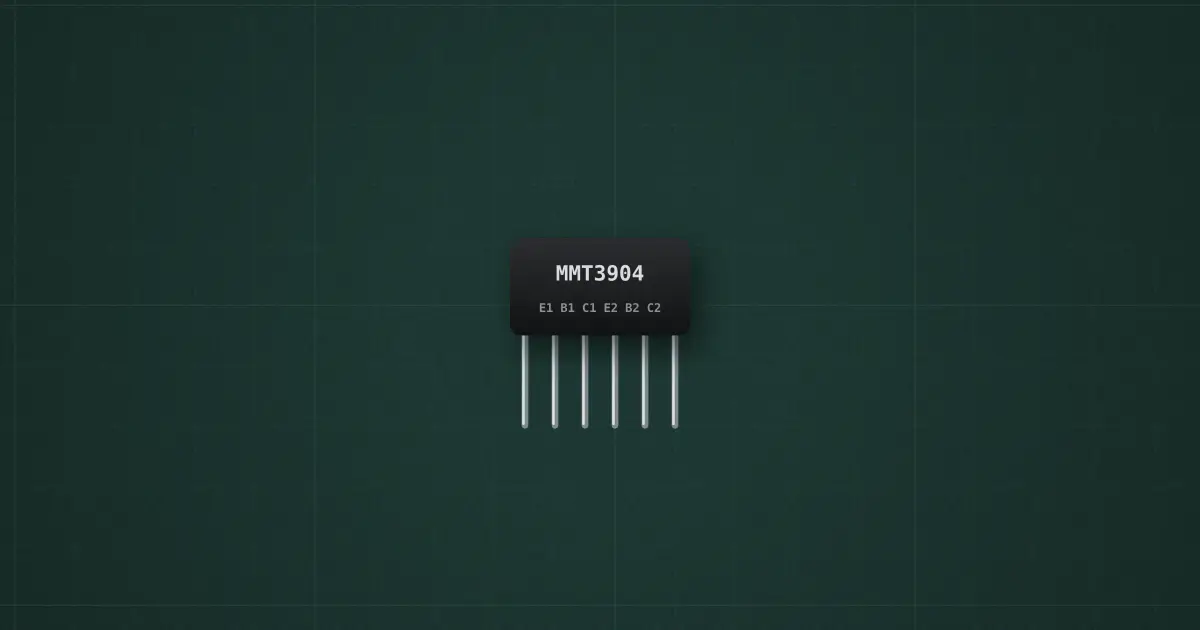

Matched transistor pair (DMMT3904) on the simulator's bench

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Typical part: Dual matched transistor

Pins

Ratings and limits

TypeNPN
V_BE match1 mV
P_total300 mW

How to use it

Two transistors on one die stay at the same temperature: the building block of current mirrors and long-tailed pairs.
