Coin acceptor

Microcontrollers & modules · 12 V · ₱1/5/10

Multi-coin acceptor · DC 12 V ±10 % · 80 mA idle, 250 mA accepting · open-collector COIN output, one pulse per peso · set to ₱1

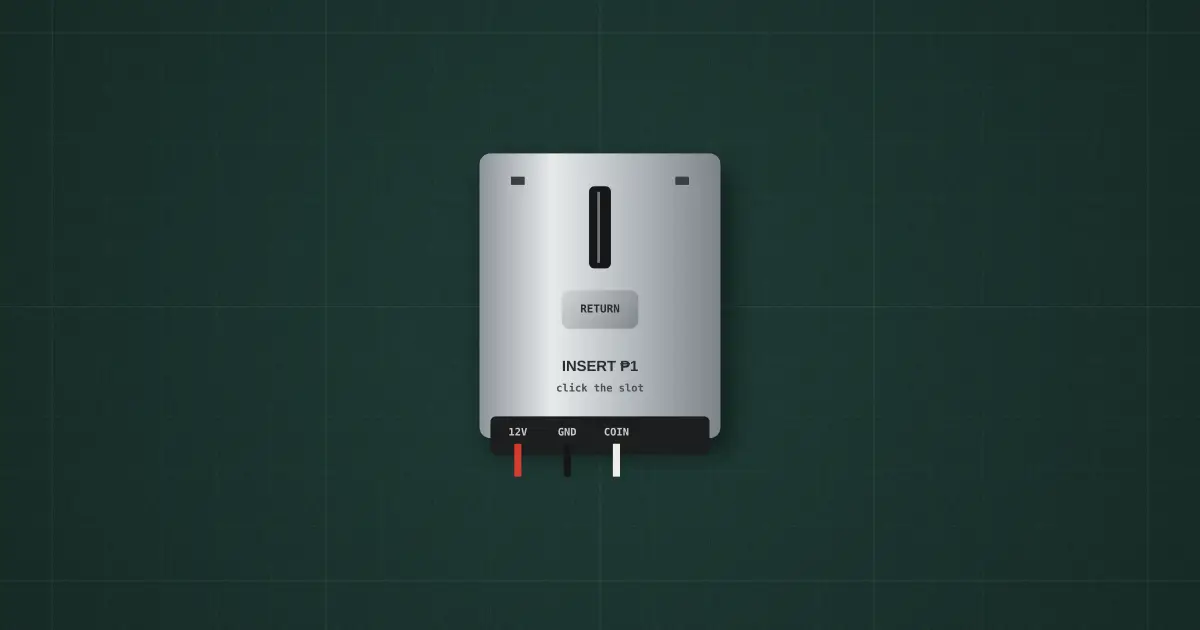

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

• DC 12V (red)
• GND (black)
• COIN signal (white)
