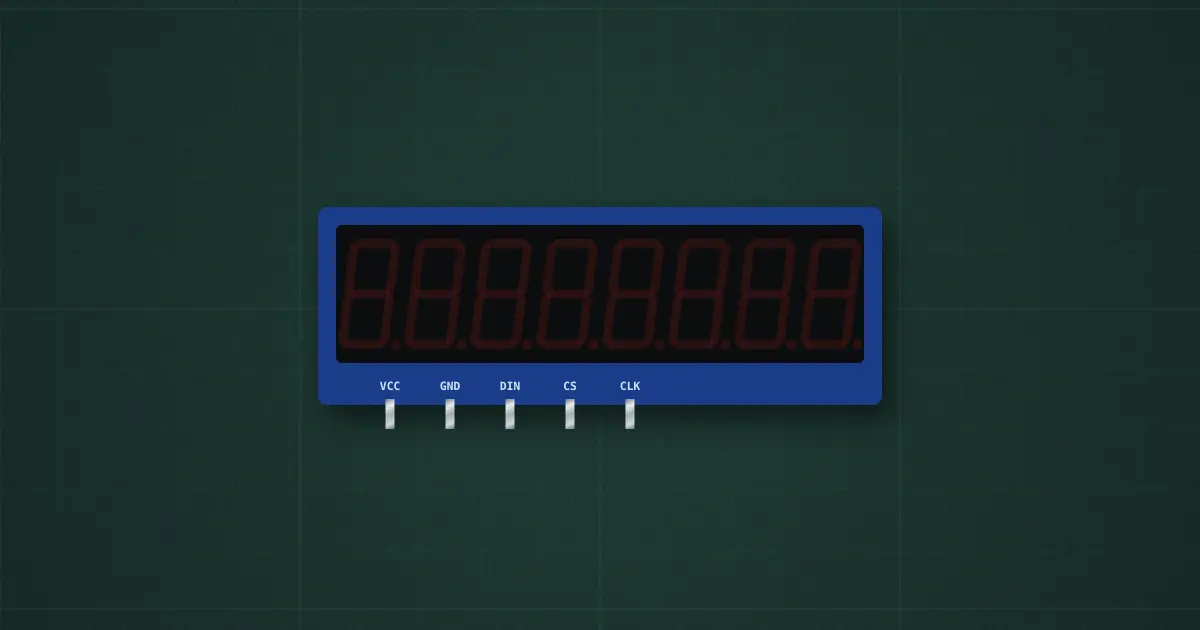

MAX7219 8-digit display

Microcontrollers & modules · SPI · 8 × 7-seg

MAX7219 LED driver with eight 7-segment digits · SPI write-only: DIN, CLK, CS (load) · 5 V · send register then data, 16 bits per frame

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

• VCC
• GND
• DIN
• CS
• CLK

Lessons and builds that use it

• SPI bus: MAX7219 display
• Stopwatch on a MAX7219 display (build)
