MPU-6050 IMU (GY-521)

Microcontrollers & modules · Accel + gyro · I²C

GY-521 breakout · 3-axis accelerometer ±2 g and gyro ±250 °/s · I²C at 0x68 · 3.3–5 V, pull-ups on board · tilt it with the sliders

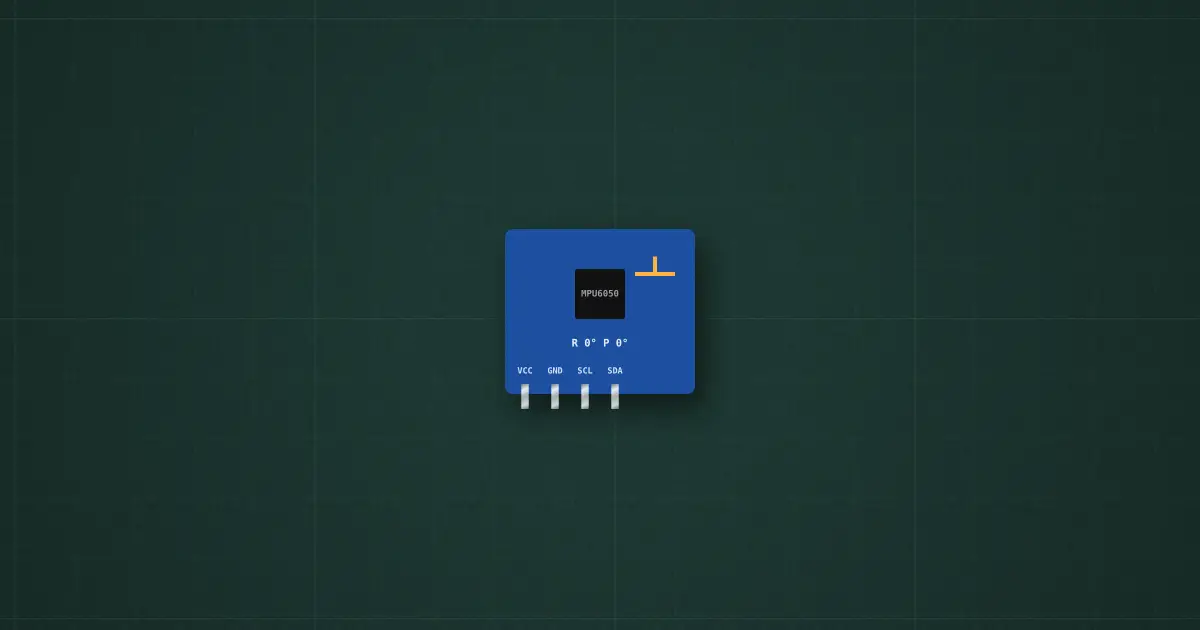

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

• VCC
• GND
• SCL
• SDA

Lessons and builds that use it

• I²C sensor: accelerometer tilt
• Sensor-to-cloud signal pipeline
