Exam: add surge protection and grounding to meet code
A hybrid system on a roof in Cebu, wired and working, with nothing to catch a lightning surge and no earth. Add what the code asks for: a surge protective device on the array side and one on the AC side, and a grounding electrode, so that the safety check’s F2 and F3 pass with zero fails overall.
Open this lesson in the labFree, in your browser, no account needed.
How it works
Graded on:
- F2: surge protection on the DC side and the AC side
- F3: a grounding electrode (a ground symbol on the bench)
- Zero safety fails
Build on this bench, then press Check my design on the exam card. 15 minutes is the target; attempts and time are kept in your transcript. Hints cost nothing but are noted.

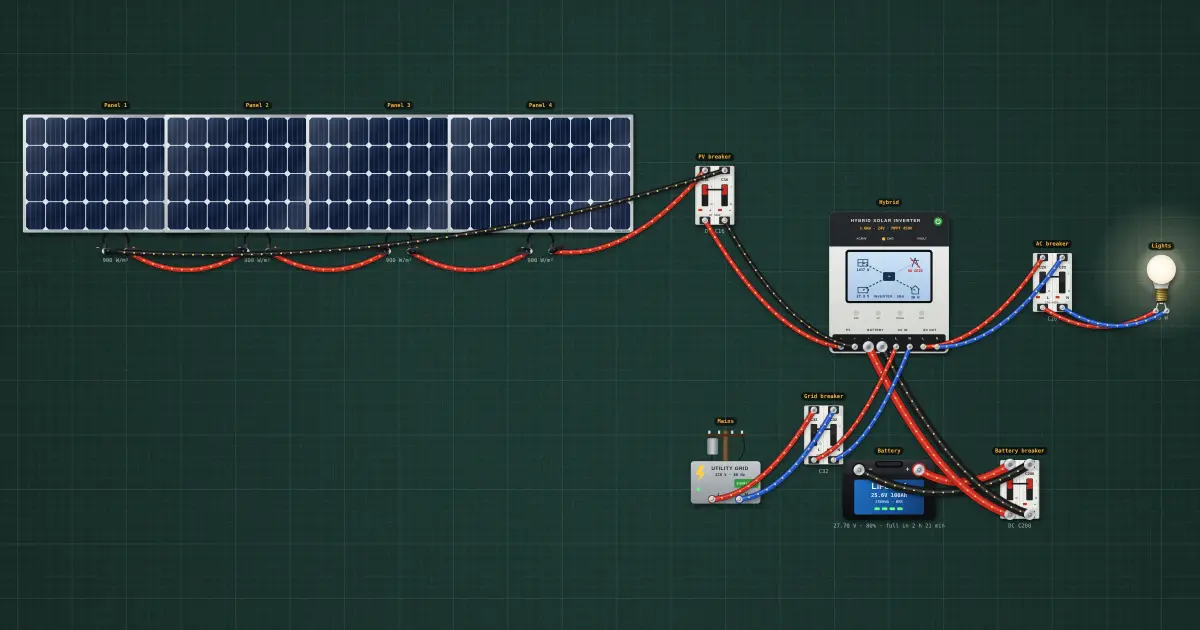

Parts on the bench
- 4 × Solar panel
- 2 × DC breaker
- Hybrid solar inverter
- LiFePO4 battery
- Utility grid
- 2 × AC breaker
- 220 V bulb
