Electronic load
Bench electronic load · constant current 1 A · 0–60 V · 0–10 A · 150 W

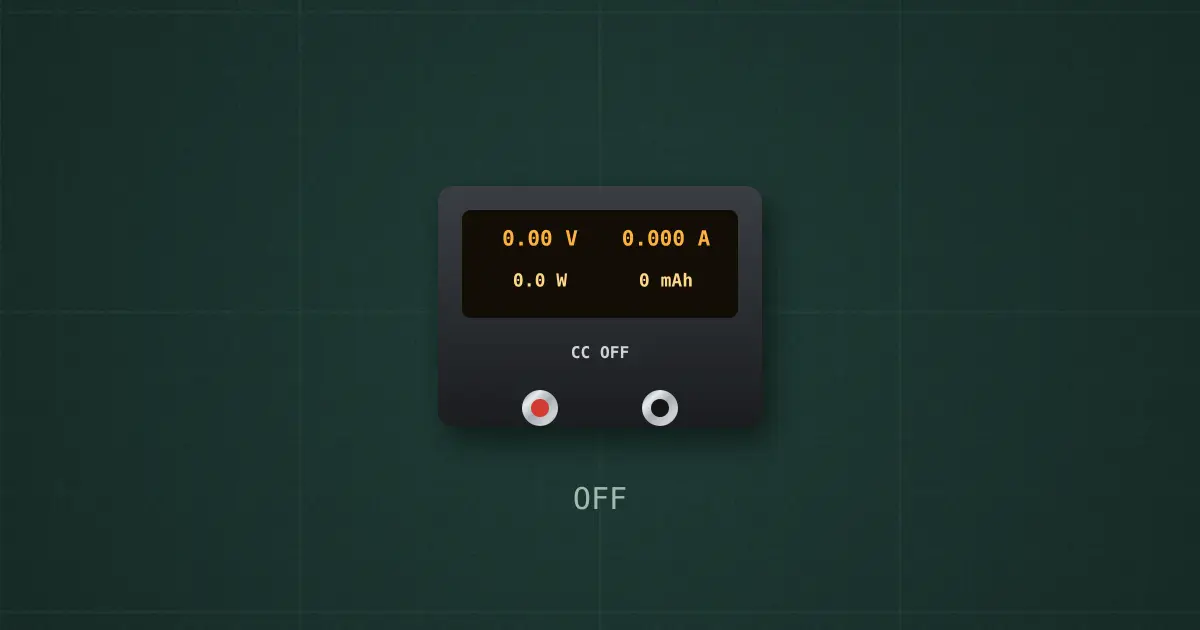

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Typical part: Bench electronic load
Pins
- +
- −
Ratings and limits
| Input | 0–60 V, 0–10 A |
|---|---|
| Power | 150 W |
| Modes | CC, CR, CP, capacity test |
How to use it
Tests supplies and batteries: constant-current discharge to a cut-off voltage reads the true capacity in mAh and Wh.
