Exam: this system fails on cold mornings

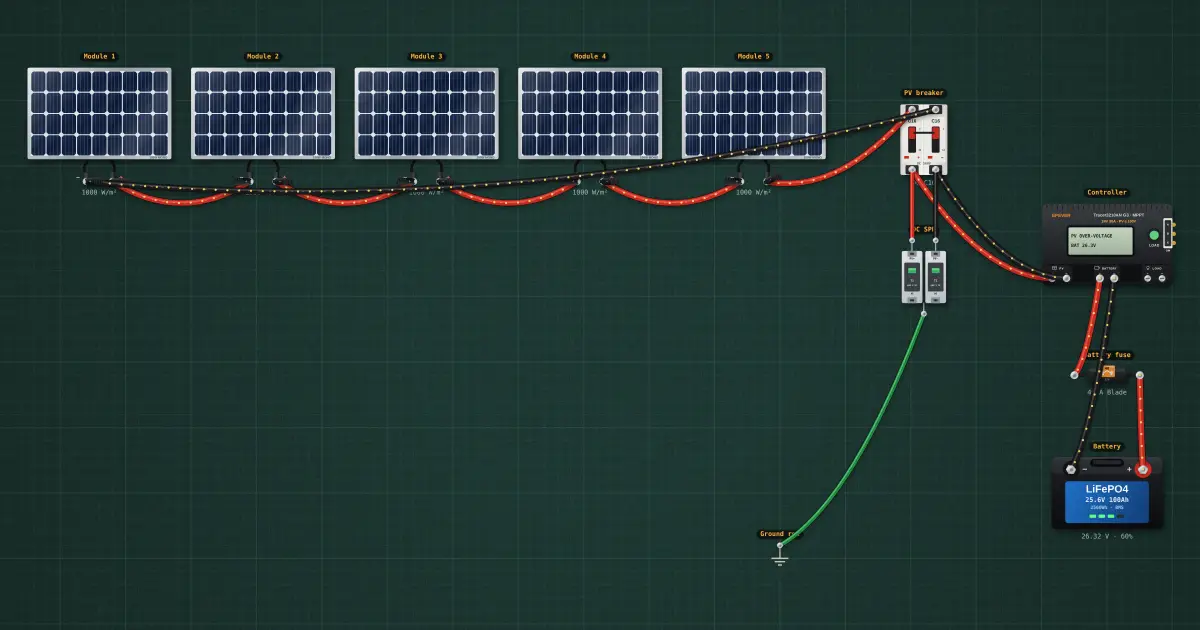

A 24 V system in Baguio: five 100 W modules in one string into a charge controller rated for 100 V input. It works every afternoon and dies, controller after controller, on cold mornings. Diagnose it with the safety check and fix it so the array still gives at least 300 W at full sun, with zero safety fails.
Open this lesson in the labFree, in your browser, no account needed.
How it works
Graded on:
- A1: string Voc at the record low (5 °C) under the controller’s 100 V input
- The array delivers at least 300 W at 1000 W/m² into the controller
- Zero safety fails
Build on this bench, then press Check my design on the exam card. 20 minutes is the target; attempts and time are kept in your transcript. Hints cost nothing but are noted.
Parts on the bench
- 5 × Solar panel
- DC breaker
- Solar charge controller
- Fuse
- LiFePO4 battery
- Surge protector (SPD)
- Ground symbol
