TVS diode
SMBJ5A unidirectional · stand-off 5 V · breakdown 5.8 V · clamps to 8.1 V at 74.1 A · 600 W for 1 ms
Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

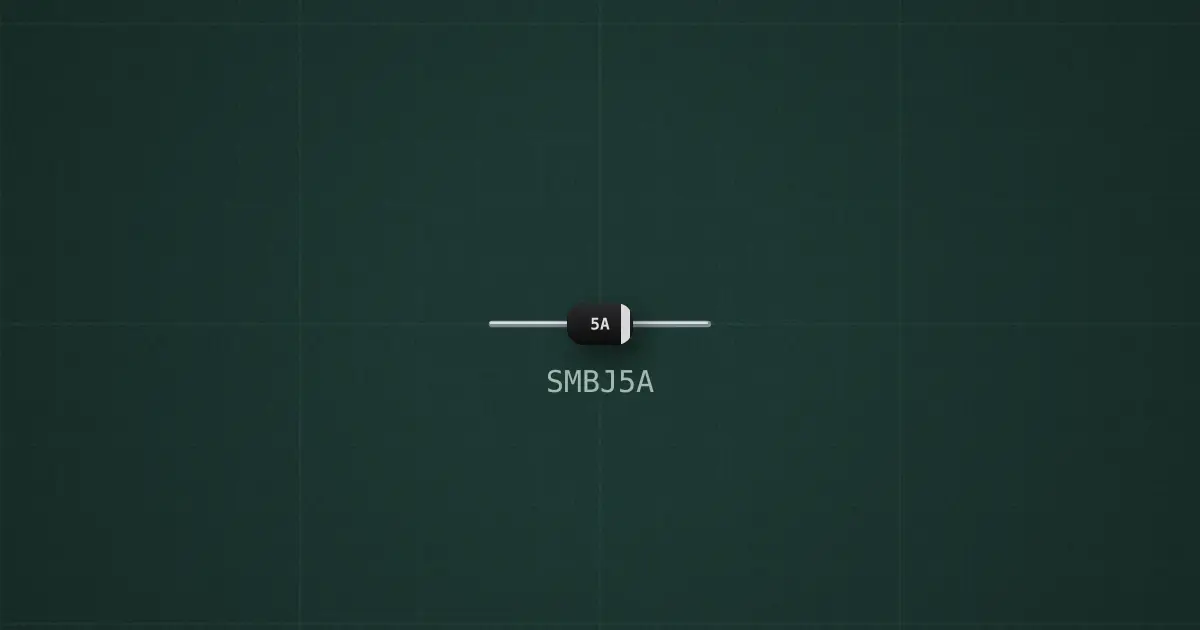

Typical part: SMBJ TVS diode
Pins
- Anode
- Cathode (band)
Ratings and limits
| Stand-off | 5 V |
|---|---|
| Breakdown | 5.8 V |
| Clamp | 8.1 V at 74.1 A |
| Peak power | 600 W for 1 ms |
How to use it
Across a supply or data line: invisible in normal use, clamps ESD and surges far faster than a MOV. Pick a stand-off voltage just above the line’s normal maximum.
